If you run a manufacturing plant, operate HVAC systems, or oversee production in the food and beverage sector, you already know how critical heating and cooling fluids are to daily operations.
But here’s the real question:
Are you managing this process as efficiently as you could?
For many businesses, switching to the right heat exchanger can mean:
Lower energy bills
Reduced maintenance downtime
Better system reliability
That’s where the Plate Heat Exchanger (PHE) comes in.
In this guide, we’ll break down exactly what a plate heat exchanger is, how it works, and why it might be the solution your operations team has been searching for.

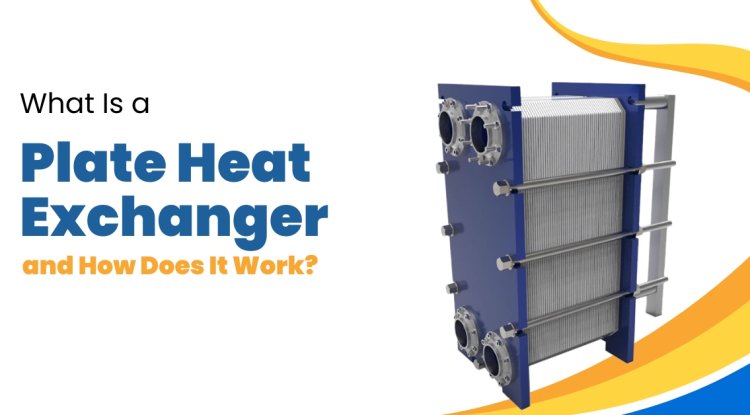

A plate heat exchanger is a compact, highly efficient system that transfers heat between two fluids without letting them mix.
Imagine a stack of thin metal sheets, each pressed into a wavy pattern, similar to playing cards fanned out on a table. Each heat exchanger plate directs hot and cold fluids through alternating channels, creating maximum surface contact for rapid heat transfer.
Unlike the traditional shell-and-tube exchangers, plate heat exchangers are smaller, more energy-efficient, and easier to maintain, making them a popular choice in industries where space and efficiency matter.
Let’s take a closer look at the design:
Plates: Thin, corrugated metal sheets made from stainless steel, titanium, or specialized alloys, depending on the fluid and environment.
Gaskets or Welds: These seal the plates and direct fluid flow.
Frame: Holds the plates in place. For gasketed models, you can easily open the frame to add or remove plates as needed.
It’s not just for strength.
The corrugation creates turbulence, forcing fluids to move in thin layers. This turbulence dramatically increases the heat transfer process efficiency because more fluid comes in contact with the plate surface.
Here’s a simple way to understand the PHE working principle:
The hot fluid enters one side, and the cold fluid enters the other.
Each fluid travels through alternating channels created by the stacked plates.
The heat naturally moves from the hot side to the cold side via the metal plates.
The plates keep the fluids completely separate, so there’s no risk of cross-contamination.
Turbulence increases the rate of heat transfer, making the process faster and more efficient.
Once the heat has been transferred, the cooled hot fluid and the warmed cold fluid exit through separate outlets.
So, why are so many industries moving away from shell-and-tube systems and adopting PHEs?
Here’s what makes them stand out:
The corrugated plates create more surface area, speeding up the heat transfer process.
Thin fluid layers allow for rapid temperature changes with minimal energy loss.
PHEs take up 50–80% less space than shell-and-tube systems.
Ideal for industries where floor space is at a premium.
Gasketed models let you remove individual plates for cleaning or inspection.
No need to shut down the entire system during routine maintenance.
Need more capacity?
Just add more plates instead of replacing the whole unit.
This makes PHEs perfect for companies expecting growth or fluctuating operational demands.
You might be wondering:
“Is this really the right solution for my industry?”
Let’s break down where and how plate heat exchangers are commonly used:
Energy recovery: Use exhaust air to preheat incoming fresh air, saving on energy costs.
Circuit separation: Prevent contamination between building loops and central plant systems.
Chiller support: Cool water in air conditioning systems with higher efficiency.
Example Use Case: Johnson Controls
Johnson Controls, a global leader in building efficiency solutions, integrates plate heat exchanger systems in its large-scale HVAC projects to improve energy efficiency in commercial buildings and data centers.
Pasteurization: Safely heat milk, juices, or beer without compromising flavor.
Ingredient temperature control: Maintain quality in sauces, dairy, and fermented products.
Rapid cooling: Bring hot products down to safe storage temperatures quickly.
Example Use Case: Nestlé
Nestlé uses plate heat exchangers in their dairy processing plants for milk pasteurization, ensuring both product safety and energy efficiency. The PHE allows for quick temperature changes, reducing spoilage risks.
Reaction temperature control: Keep chemical reactions stable.
Solvent recovery: Condense vapors without contaminating fluids.
Cooling sensitive fluids: Maintain precision for pharmaceutical ingredients.
Example Use Case: BASF
BASF, one of the world’s largest chemical manufacturers, uses plate heat exchangers in its production lines to maintain optimal reaction temperatures during chemical synthesis, helping to maximize yield and minimize energy use.
Cooling turbine lubricants
Preheating boiler feedwater
Waste heat recovery
Example Use Case: NTPC Limited (National Thermal Power Corporation, India)
NTPC, India’s largest power utility company, uses plate heat exchangers in auxiliary systems to cool lubricating oil and preheat water, improving plant efficiency and reducing operational costs.
Engine cooling systems
Freshwater generation
Fuel oil preheating
Example Use Case: Maersk Line
Maersk Line, the world’s largest container shipping company, uses plate heat exchangers onboard their vessels for engine jacket water cooling and lubricating oil temperature control, ensuring reliable operation during long sea voyages.
Transfer heat from a centralized plant to individual buildings without mixing fluids.
Improve energy transfer efficiency in urban systems.
Example Use Case: Vattenfall
Vattenfall, a European energy company, uses plate heat exchangers in its district heating networks in Sweden and Germany. The technology helps deliver hot water for residential and commercial heating without fluid cross-contamination.
Hydraulic oil cooling
Temperature control in molding and metal forming
Heat recovery from wastewater
Example Use Case: Bosch Automotive Components
Bosch uses plate heat exchangers in its automotive parts manufacturing plants to maintain hydraulic oil temperatures in stamping and injection molding equipment, ensuring consistent production quality and reducing equipment wear.
Choosing the right plate heat exchanger isn’t just about hardware—it’s about improving your plant’s efficiency, scalability, and long-term profitability.
If your business involves heating or cooling fluids, a plate heat exchanger could:
Lower operational costs
Reduce downtime
Provide the flexibility to grow as your needs change
Before making a purchase, consider consulting with experts who specialize in PHE solutions to help you customize the best setup for your operation.
A. If your process involves heating or cooling fluids, especially in HVAC, food, chemical, or manufacturing, a PHE is likely a good fit due to its efficiency and compact design.
A. Common materials include stainless steel for general applications and titanium for corrosive fluids like seawater or acids.
A. Yes! Most PHEs are modular, meaning you can add or remove plates to increase or decrease capacity without replacing the whole system.
A. PHEs are generally more efficient and space-saving for low to moderate pressure applications. Shell-and-tube systems are preferred for extremely high-pressure or high-temperature environments.
A. Not at all. Gasketed plate heat exchangers are specifically designed for easy maintenance. Plates can be removed individually for cleaning, inspection, or replacement.
