Understanding the plate heat exchanger price is essential for industries planning new installations, system upgrades, or replacement projects. Whether you are evaluating a compact unit for HVAC or a heavy-duty spiral plate heat exchanger for chemical processing, pricing depends on multiple technical and operational factors — not just size alone.

In this guide, we break down what influences plate heat exchanger price, compare different configurations, explain where a spiral plate heat exchanger is most suitable, and help industrial buyers make informed decisions based on performance, durability, and lifecycle value.

What Determines Plate Heat Exchanger Price?

The plate heat exchanger price varies significantly depending on:

• Type of exchanger (gasketed, welded, brazed, spiral)
• Plate material (SS304, SS316, titanium, nickel alloys)
• Plate thickness and design pattern
• Pressure and temperature rating
• Number of plates (heat transfer area)
• Gasket material
• Frame construction quality
• Industry compliance standards

Price should always be evaluated against total lifecycle cost — including maintenance, energy efficiency, and operational reliability.

According to energy efficiency data published by the U.S. Department of Energy, optimized heat exchanger selection can significantly reduce long-term energy consumption in industrial systems.

Approximate Plate Heat Exchanger Price Range (Industrial Use)

Below is a general industrial pricing overview. Actual pricing depends on specifications and project scope.

Type	Application	Approximate Price Range (Indicative)
Gasketed Plate Heat Exchanger	HVAC / Dairy	Mid-range
Semi-Welded Plate Exchanger	Chemical	Higher
Fully Welded Plate Exchanger	High pressure systems	Premium
Brazed Plate Heat Exchanger	Refrigeration	Lower-mid
Spiral Plate Heat Exchanger	Slurry / viscous fluids	Application-based pricing

For industrial-grade options and consultation, explore Gasketed Plate Heat Exchangers and Welded Plate Heat Exchangers.

Why Spiral Plate Heat Exchanger Is Used in Heavy-Duty Applications

A spiral plate heat exchanger differs from conventional plate and frame systems. It consists of two long metal plates wound into a spiral shape, forming continuous channels for fluid flow.

Key Advantages:

• Handles viscous fluids and slurry
• Reduced fouling due to single-channel flow
• Self-cleaning flow pattern
• High reliability in continuous industrial operation
• Lower maintenance frequency

Spiral configurations are ideal for:

• Petrochemical plants
• Effluent treatment
• Pulp and paper industries
• Distilleries
• Heavy chemical processing

Learn more about industrial spiral systems at Spiral Heat Exchangers.

Factors That Increase Plate Heat Exchanger Price

1. Material Upgrade

Titanium or special alloys increase cost but improve corrosion resistance.

2. Higher Pressure Rating

Heavy frame and thicker plates add to price.

3. Hygienic Design Requirements

Food and pharmaceutical industries require specialized surface finishing.

4. Custom Manufacturing

Customized port size, plate pattern, or expansion capability affects pricing.

5. Brand Compatibility

Replacement systems designed for specific industrial brands may influence cost.

For example, compatible solutions are available at:

• Replacement Parts
• APV SPX Replacement Plates & Gaskets
• GEA Kelvion Replacement Plates & Gaskets
• Funke & HRS Replacement Plates & Gaskets

Spiral Plate Heat Exchanger vs Plate and Frame: Cost Comparison

Feature	Plate & Frame	Spiral Plate Heat Exchanger
Maintenance	Easy plate removal	Low fouling, less frequent cleaning
Footprint	Compact	Slightly larger
Initial Price	Moderate	Application-specific
Viscous Fluid Handling	Limited	Excellent
Pressure Capacity	High	High

While spiral systems may have a higher upfront investment in some cases, they often reduce operational downtime in slurry or viscous applications.

Technical fundamentals of heat transfer mechanisms are widely documented by academic institutions such as MIT and research databases, emphasizing that flow dynamics strongly impact exchanger efficiency.

Lifecycle Cost vs Initial Plate Heat Exchanger Price

Many buyers focus only on upfront plate heat exchanger price, but true evaluation should include:

• Energy efficiency savings
• Maintenance frequency
• Replacement part availability
• Downtime impact
• Expected service life

A slightly higher initial investment in properly engineered systems can result in long-term operational savings.

For detailed product overview, visit SRJ Heatt Exchangers India Pvt. Ltd. and learn about the company’s expertise at About Us.

How to Get an Accurate Plate Heat Exchanger Price Quote

To receive a precise quotation, provide:

• Flow rate (m³/hr)
• Inlet & outlet temperatures
• Fluid type
• Operating pressure
• Required heat duty (kW)
• Available installation space

Without technical parameters, pricing can only be estimated broadly.

When Should You Choose a Spiral Plate Heat Exchanger?

Select a spiral configuration when:

• Fluids contain suspended solids
• Fouling tendency is high
• Continuous operation is critical
• Cleaning shutdown must be minimized
• Sludge or slurry handling is required

Spiral units are engineered for demanding industrial environments where conventional plate systems may clog faster.

Frequently Asked Questions (FAQ)

1. What is the average plate heat exchanger price in India?

The price depends on plate size, material, pressure rating, and type. Industrial systems are quoted based on technical specifications rather than fixed pricing.

2. Is spiral plate heat exchanger more expensive than plate and frame?

In some applications, spiral units may cost more initially but offer lower maintenance and better performance for viscous fluids.

3. Does material grade impact plate heat exchanger price?

Yes. Titanium and special alloys significantly increase cost compared to standard stainless steel.

4. Which industries use spiral plate heat exchangers?

Petrochemical, wastewater treatment, pulp & paper, and chemical industries frequently use spiral designs.

5. How can I reduce long-term operating cost?

Select the correct exchanger type, ensure proper installation, and use high-quality replacement parts when needed.

Final Thoughts

Choosing the right system is not just about comparing plate heat exchanger price. It requires technical evaluation, long-term performance planning, and application-based decision making.

For industries dealing with complex fluids, a spiral plate heat exchanger offers reliability and reduced fouling. For general heating and cooling duties, gasketed or welded plate systems remain highly efficient and cost-effective.

A well-engineered solution ensures consistent thermal performance, energy savings, and operational stability across industrial processes.

In the world of thermal management and industrial processing, efficiency is the currency of success. Whether you are managing a massive chemical plant, a hygienic food processing line, or a complex HVAC system, the equipment you choose defines your operational costs. Enter the plate and frame heat exchanger—a marvel of engineering designed to maximize heat transfer while minimizing footprint.

If you are looking for a plate type heat exchanger or simply trying to understand the nuances of a phe heat exchanger, this comprehensive guide is for you. We will dive deep into the mechanics, maintenance, and selection criteria for these critical components, ensuring you have the expert knowledge needed to optimize your systems.

What is a Plate Heat Exchanger?

At its core, a plate heat exchanger (PHE) is a device designed to transfer thermal energy between two fluids without them mixing. Unlike traditional shell-and-tube designs, a plate exchanger utilizes a series of corrugated metal plates to create heat transfer channels.

The concept is a brilliant example of a plate to plate heat exchanger mechanism. Fluids flow in alternating channels, separated by thin metal plates. This design creates a massive surface area in a compact frame, allowing for extremely efficient heat exchange. The corrugations on every phe plate are not just for structural integrity; they induce turbulence in the fluid, which significantly enhances the heat transfer coefficient and reduces fouling (the buildup of unwanted material).

Why Choose a Plate and Heat Exchanger System?

When engineers compare a plate and heat exchanger setup to other technologies, several distinct advantages emerge:

1. High Efficiency: The counter-current flow and high turbulence allow for close temperature approaches (as low as 1°C).
2. Compact Design: A plate heat exchanger requires only 20-30% of the floor space of a shell-and-tube exchanger of the same capacity.
3. Flexibility: Particularly with a plate and frame heat exchanger, you can easily expand capacity by loosening the frame and adding more plates.
4. Easy Maintenance: The units can be dismantled for cleaning and inspection, making it easy to replace a single plate for heat exchanger maintenance rather than the whole unit.

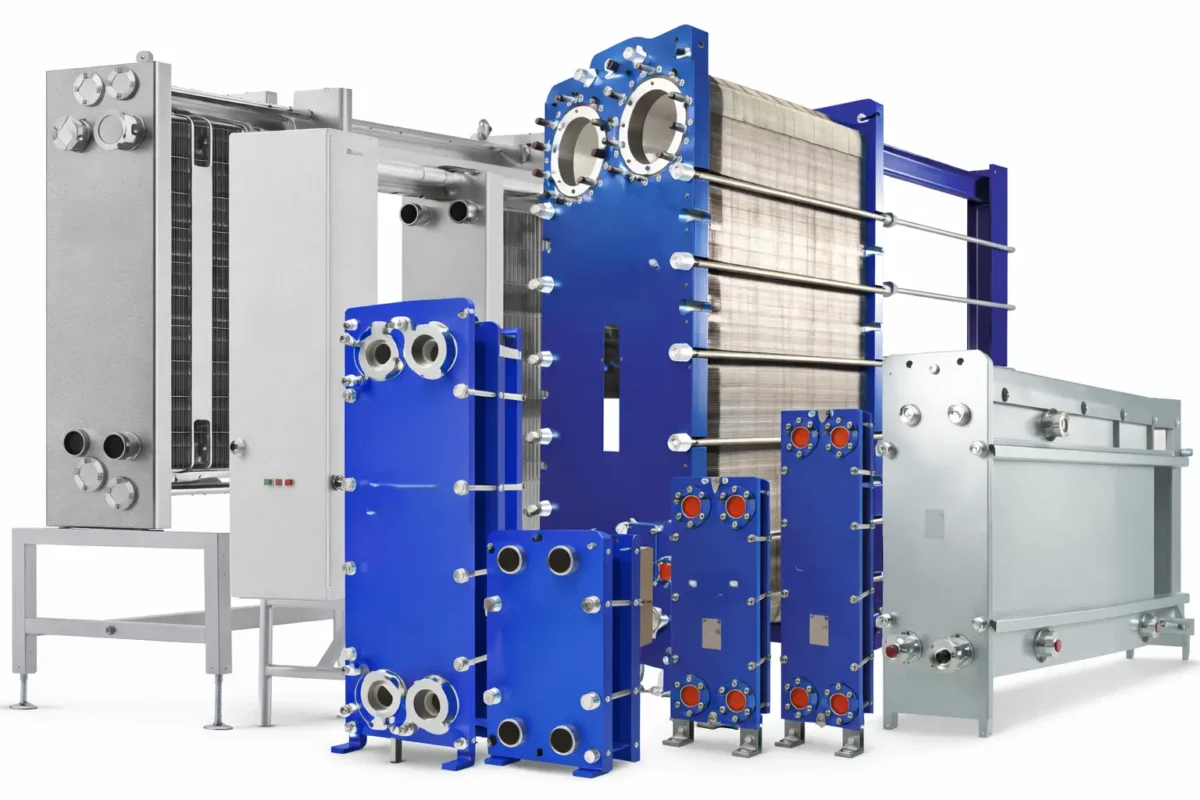

Types of Plate Heat Exchangers

Understanding the specific type of plate heat exchangers required for your application is crucial for longevity and performance.

1. Gasketed Plate Heat Exchangers

This is the most common industrial variant. It consists of a pack of plates with gaskets sealing the channels and directing the fluids into alternate passages. The entire pack is compressed between a fixed frame plate and a movable pressure plate.

• Best for: HVAC, general industrial cooling, and food processing where frequent cleaning is required.
• Benefit: Fully dismantlable for easy maintenance.
• Learn More: Explore Gasketed Plate Heat Exchangers for detailed specifications.

2. Brazed Plate Heat Exchangers

In these units, the plates are brazed together (usually with copper or nickel) in a vacuum furnace, eliminating the need for gaskets and heavy frames.

• Best for: High-pressure and high-temperature applications, refrigeration, and district heating.
• Benefit: extremely compact and leak-proof.
• Learn More: Check out high-performance Brazed Plate Heat Exchangers.

3. Welded and Semi-Welded PHEs

For aggressive fluids that might destroy standard gaskets, welded options are ideal. A semi-welded phe heat exchanger uses laser welds to seal the channel for the aggressive fluid, while the non-aggressive side remains gasketed for serviceability.

• Best for: Refrigeration (ammonia), chemical processing, and corrosive fluids.
• Learn More: See options for Semi-Welded Plate Heat Exchangers.

The Anatomy of Efficiency: Plates and Gaskets

The soul of any phe heat exchanger lies in its components. The selection of the right plate for heat exchanger duty is a matter of material science and fluid dynamics.

The Plates

The heat exchanger plate is usually pressed from a single sheet of metal. Common materials include:

• Stainless Steel (304/316): For water, mild acids, and food products.
• Titanium: Essential for seawater and chloride-rich fluids to prevent corrosion.
• Hastelloy/Inconel: For highly aggressive acids and corrosive environments.

The corrugation pattern (chevron angle) on the phe plate dictates the pressure drop and thermal efficiency. High-theta plates offer high heat transfer but higher pressure drop, while low-theta plates offer the reverse.

The Gaskets

Gaskets are the sealing heroes of a plate and frame heat exchanger. They must withstand the temperature and chemical nature of the process fluids.

• NBR (Nitrile): Ideal for oil and water applications up to 138°C.
• EPDM: Perfect for steam, water, and weak acids up to 160°C.
• Viton (FKM): Required for organic solvents and high temperatures.

When your system efficiency drops, it is often time to look at Replacement Parts. Using high-quality Heat Exchanger Plates and gaskets is vital to return the unit to OEM specifications.

Technical Comparison: Plate vs. Shell & Tube

To provide a clear “EEAT” (Expertise, Authoritativeness, Trustworthiness) perspective, let’s look at the data. According to research from standard engineering practices, the difference in heat transfer coefficients is stark.

Feature	Plate Heat Exchanger	Shell & Tube Exchanger
Heat Transfer Coefficient (K-value)	3500 – 7500 W/m²K	1200 – 2000 W/m²K
Space Requirement	Low (Compact)	High (Requires bundle pulling space)
Approach Temperature	As low as 1°C	Typically 5°C – 10°C
Fouling Factor	Low (High turbulence)	Moderate to High
Expandability	Easy (Add plates)	Impossible (Fixed shell)

Source Reference: For a deeper dive into heat transfer coefficients, refer to resources like The Engineering Toolbox or standard Thermodynamics texts.

Industries Driving the Demand for Plate Exchangers

The versatility of the plate type heat exchanger makes it ubiquitous across various sectors.

1. HVAC and Refrigeration

In modern green buildings, a plate to plate heat exchanger acts as a “pressure breaker” between high-rise static heads and cooling towers. They are also integral to district cooling networks.

2. Food and Beverage

Pasteurization requires precise temperature control. A plate and heat exchanger system can heat milk to pasteurization temperature and regenerate heat from the cooling cycle, saving massive amounts of energy.

3. Chemical Processing

Handling aggressive acids requires robust engineering. Companies often rely on SRJ Heat Exchangers for expert consultation on material compatibility, ensuring the plate exchanger does not fail under chemical attack.

4. Marine and Power

Cooling massive engines and turbines requires the high-capacity throughput of a phe heat exchanger. Titanium plates are standard here to resist the corrosive effects of seawater cooling.

Maintenance: The Key to Longevity

Even the best plate and frame heat exchanger requires maintenance. Over time, calcium deposits, biological growth, or process debris can foul the plates.

Cleaning In Place (CIP):

For light fouling, circulating a cleaning solution through the plate exchanger without opening it is effective. This dissolves scale and returns efficiency.

Manual Cleaning:

For heavy fouling, the unit must be opened. This involves:

1. Loosening the carrying bars.
2. Separating the phe plate pack.
3. Pressure washing each plate.
4. Inspecting gaskets for cracks or deformation.

If you find damaged components, sourcing reliable replacements is critical. Whether you need SRJ/AL Replacement Plates & Gaskets or components for other brands like Tranter/Swep, ensuring fitment accuracy is non-negotiable.

Pro Tip: Always tighten the plate pack to the specific dimension (A-dimension) specified in your manual. Over-tightening can crush the plates; under-tightening will cause leaks.

Selecting the Right Manufacturer

Choosing a plate for heat exchanger manufacturing partner is as important as the hardware itself. You need a team that understands thermodynamics, not just sales.

At SRJ Heat Exchangers, we pride ourselves on being industry leaders. As highlighted in our About Us section, our expertise spans across manufacturing new units and providing spares for almost every major global brand.

We ensure that every plate type heat exchanger leaving our facility meets rigorous quality standards. Whether you need a specialized Spiral Heat Exchanger for sludge applications or a standard gasketed unit for water cooling, our engineering team provides tailored solutions.

Frequently Asked Questions (FAQ)

1. How often should I service my plate heat exchanger?

Maintenance intervals depend on the fluid types. For clean water, a plate heat exchanger might run for years without opening. For process fluids or hard water, annual inspection is recommended. If you notice an increase in pressure drop or a decrease in temperature difference, it is time to check for fouling.

2. Can I increase the capacity of my existing PHE?

Yes, this is a primary benefit of a plate and frame heat exchanger. Provided the frame has enough remaining length on the carrying bar, you can add more pairs of plates to increase the heat transfer area and capacity.

3. What is the difference between a gasketed and a brazed plate exchanger?

A gasketed plate heat exchanger uses rubber seals and can be opened for cleaning or expansion. A brazed plate heat exchanger is permanently sealed (brazed) and cannot be opened. Brazed units are more compact and handle higher pressures but are disposable if they foul heavily or leak.

4. How do I choose the right plate material?

The material depends on the fluid’s chloride content and acidity.

• SS304: General water/oil.
• SS316: Standard for most industrial applications/food.
• Titanium: Required for saltwater or high-chloride fluids.
• Hastelloy/Titanium Palladium: For aggressive acids.
  Consulting with experts at SRJ Heat Exchangers can help prevent costly corrosion failures.

5. Why is my plate heat exchanger leaking?

Leaks usually occur due to three reasons:

• Old Gaskets: Rubber loses elasticity over time (compression set).
• Improper Tightening: The plate pack is not tightened to the correct dimension.
• Pressure Spikes: Sudden pumps starting (water hammer) can blow out gaskets.
  If you have a leak, check the tightening dimension first, then inspect gaskets for replacement.

Conclusion

The plate heat exchanger remains one of the most efficient thermal transfer technologies available today. From the simple phe plate design to complex multi-pass plate and heat exchanger configurations, these units save energy, reduce carbon footprints, and optimize industrial processes globally.

Whether you are designing a new plant or maintaining an existing system, understanding the nuances of your plate type heat exchanger is vital. Prioritize quality components, regular maintenance, and expert consultation.

For all your heat transfer needs, from complete units to specific Heat Exchanger Plates, trust the expertise of SRJ Heat Exchangers to keep your operations running cool and efficient.



The demand for reliable plate heat exchanger manufacturers is rising rapidly across dairy, chemical, HVAC, pharmaceutical, distillery, food processing, and energy sectors. Industrial buyers today are not just searching for equipment; they are evaluating engineering capability, plate precision, lifecycle performance, and long-term service reliability. Plate heat exchanger manufacturers in India provide engineered thermal solutions for dairy, chemical, HVAC, pharmaceutical and energy industries requiring compact and efficient heat transfer systems.

Professional plate heat exchanger manufacturers play a critical role in delivering compact, energy-efficient thermal systems that support high production stability and reduced operating cost. In India, this segment has matured significantly, with manufacturers offering gasketed, welded, semi-welded, and brazed solutions tailored to process industries.

Plate Heat Exchanger Manufacturers in India

India has emerged as a strong manufacturing base for thermal equipment. Leading plate heat exchanger manufacturers in India now serve both domestic and export markets with engineered plate systems built to international performance standards.

When evaluating plate heat exchanger manufacturers in India, key technical capabilities should include:

• In-house plate pressing
• Thermal design calculation
• Pressure drop optimization
• Plate material compatibility
• Spare and replacement availability

Fundamental heat transfer principles behind plate systems are documented in the engineering reference available at
https://en.wikipedia.org/wiki/Heat_exchanger

A reliable manufacturer must translate these principles into practical industrial design.

Core Product Range Offered by Plate Heat Exchanger Manufacturers

Professional plate heat exchanger manufacturers provide multiple configurations based on application needs:

1. Gasketed Systems

For industries requiring frequent inspection and cleaning, gasketed units are preferred. Explore engineered configurations here:
https://srj.co.in/gasketed-plate-heat-exchangers/

2. Semi-Welded Systems

Suitable for higher pressure and selective industrial fluids:
https://srj.co.in/semi-welded-plate-heat-exchangers/

3. Welded Systems

For demanding process conditions requiring higher mechanical strength:
https://srj.co.in/welded-plate-heat-exchangers/

4. Brazed Systems

Compact solutions ideal for HVAC and refrigeration:
https://srj.co.in/brazed-plate-heat-exchangers/

Each configuration offered by established plate heat exchanger manufacturers is engineered for specific duty conditions.

Plate Heat Exchanger Working Principle

Understanding the plate heat exchanger working principle is essential before selecting manufacturers.

The plate heat exchanger working principle is based on:

• Thin corrugated plates
• Alternating hot and cold channels
• Counter-current flow
• High turbulence generation

This design increases heat transfer coefficient while maintaining compact dimensions.

Detailed engineering research on plate heat transfer enhancement is available through
https://www.sciencedirect.com/topics/engineering/plate-heat-exchanger

A competent plate heat exchanger manufacturer in India must validate performance using thermal calculations rather than generic sizing.

Plate Heat Exchanger Calculation

Professional plate heat exchanger manufacturers perform detailed calculations including:

• Heat duty estimation
• Log Mean Temperature Difference (LMTD)
• Overall heat transfer coefficient
• Flow velocity balancing
• Pressure drop control

Accurate plate heat exchanger calculation ensures optimal plate count and system stability.

Thermal calculation standards and engineering methodologies are discussed by
https://www.asme.org

Selecting manufacturers without design validation can lead to underperformance.

Plate Heat Exchanger Price in India

Searches for plate heat exchanger price in India or plate heat exchanger price list are common. However, price varies based on:

• Plate material grade
• Number of plates
• Pressure rating
• Frame thickness
• Application type

A fixed plate heat exchanger price list is rarely accurate without technical specifications.

When comparing plate heat exchanger price in India, buyers should consider lifecycle cost rather than initial price alone.

Plate Heat Exchanger Manufacturer in Ahmedabad

Ahmedabad is a strong industrial cluster serving chemical and pharmaceutical industries. Buyers searching for a plate heat exchanger manufacturer in Ahmedabad typically require:

• Corrosion-resistant plate materials
• Chemical process compatibility
• High-pressure design capability

Industrial growth data for Gujarat can be referenced at
https://www.makeinindia.com

A technically capable plate heat exchanger manufacturer in Ahmedabad should demonstrate industrial application experience.

Plate Heat Exchanger Manufacturers in Pune

Pune supports automotive, engineering, and HVAC industries. Selection of plate heat exchanger manufacturers in Pune often depends on:

• Industrial process knowledge
• Compact design capability
• Service support responsiveness

However, engineering capability should always take priority over proximity when choosing plate heat exchanger manufacturers near me.

Brazed Plate Heat Exchanger Manufacturers in India

For compact HVAC and refrigeration systems, buyers evaluate brazed plate heat exchanger manufacturers in India.

Brazed systems:

• Use copper or nickel brazing
• Operate at higher pressures
• Require precise manufacturing control

Engineering validation is critical while selecting brazed plate heat exchanger manufacturers in India.

Heat Exchanger Plate Manufacturing Capability

One major factor distinguishing leading plate heat exchanger manufacturers is in-house plate manufacturing.

Precision pressing and plate geometry influence turbulence and efficiency. Technical details about plate engineering can be reviewed here:
https://srj.co.in/heat-exchanger-plate/

Without proper plate design capability, performance claims remain theoretical.

Replacement & Lifecycle Support

Industrial plants require long-term spare availability. Leading plate heat exchanger manufacturers in India provide replacement solutions to maintain operational continuity.

Replacement engineering solutions can be explored here:
https://srj.co.in/replacement-parts/

Lifecycle support differentiates professional plate heat exchanger manufacturers from simple equipment traders.

Quality Standards and Compliance

Global material and manufacturing standards referenced by professional plate heat exchanger manufacturers often align with:

• ASTM standards: https://www.astm.org
• NIST material data: https://www.nist.gov

Adherence to recognized engineering norms ensures reliability and safety.

Why Choosing the Right Plate Heat Exchanger Manufacturers Matters

Selecting experienced plate heat exchanger manufacturers ensures:

• Stable thermal performance
• Reduced energy consumption
• Lower downtime
• Predictable maintenance cost

Energy efficiency guidance issued by the International Energy Agency highlights the importance of optimized thermal systems:
https://www.iea.org

Efficient plate systems contribute directly to sustainability goals.

Frequently Asked Questions

1. How to choose reliable plate heat exchanger manufacturers in India?

Evaluate engineering design capability, manufacturing infrastructure, plate precision, and service support.

2. What affects plate heat exchanger price in India?

Plate material, plate count, pressure rating, and application type determine cost.

3. What is the plate heat exchanger working principle?

It is based on heat transfer between two fluids through corrugated plates arranged to create turbulence and maximize efficiency.

4. Are brazed plate heat exchanger manufacturers in India suitable for HVAC?

Yes, brazed systems are commonly used in compact HVAC and refrigeration applications.

5. Why is in-house plate manufacturing important?

It ensures dimensional accuracy, consistent turbulence generation, and reliable long-term performance.

Final Conclusion

The market for plate heat exchanger manufacturers continues to expand as industries demand compact, efficient, and scalable heat transfer systems. Whether evaluating plate heat exchanger manufacturers in India, comparing plate heat exchanger price in India, or understanding the plate heat exchanger working principle, engineering depth must guide the decision.

Professional plate heat exchanger manufacturers provide not just equipment, but long-term thermal reliability backed by precision plate design, validated calculations, and lifecycle support.

In high-performance industrial environments, heat transfer is not an isolated function. It directly influences product quality, energy efficiency, process stability, and compliance with regulatory norms. As industries evolve toward tighter control and lower energy intensity, the plate type heat exchanger has become a fundamental element of modern thermal system design.

A plate type heat exchanger delivers a unique combination of efficiency, flexibility, and serviceability that aligns with real-world industrial demands. Unlike rigid thermal equipment, plate heat exchangers adapt to changing process conditions while maintaining predictable performance. This adaptability is the primary reason engineers across industries consistently prefer plate-based systems.

Fundamental Heat Transfer Mechanism in Plate Type Heat Exchanger

A plate type heat exchanger operates by transferring heat between two fluids through thin metallic plates arranged in close proximity. Each plate for heat exchanger is designed to maximize surface area while promoting turbulence inside the flow channels.

In a plate to plate heat exchanger, alternating plates form separate channels for hot and cold fluids. The corrugated plate geometry disrupts laminar flow, creating turbulence that significantly improves heat transfer coefficients.

The underlying thermodynamic and fluid mechanics principles governing this process are well documented in academic literature and summarized in authoritative references such as the heat exchanger overview on
Wikipedia heat exchanger

Plate and Frame Heat Exchanger: Structural Engineering Perspective

A plate and frame heat exchanger consists of:

• A fixed frame plate and movable pressure plate
• A precisely aligned plate pack
• Sealing elements that control fluid routing

Each phe plate is mounted in a way that ensures uniform compression across the entire plate pack. Proper compression is critical because under-compression can cause leakage, while over-compression can deform plates and reduce thermal performance.

This mechanical simplicity, combined with thermal efficiency, makes the plate and heat exchanger system suitable for continuous industrial operation.

Plate Geometry and Its Impact on Performance

The performance of a phe heat exchanger is strongly influenced by plate geometry. A plate for heat exchanger is not interchangeable across applications without engineering evaluation.

Key Plate Design Parameters

Chevron Angle

• Low angle: lower pressure drop, lower turbulence
• High angle: higher turbulence, higher heat transfer

Plate Thickness

Thicker plates increase pressure resistance but slightly reduce heat transfer efficiency. Thinner plates enhance thermal performance but require precise operating control.

Surface Pattern Depth

Deeper corrugations increase surface area and turbulence, improving heat transfer while increasing pressure drop.

Each phe plate represents a balance between efficiency, mechanical strength, and hydraulic behavior.

Material behavior and corrosion resistance considerations are governed by metallurgical standards published by institutions such as
NIST materials engineering references

Pressure Drop and Flow Distribution Analysis

Pressure drop is a critical design parameter in any plate type heat exchanger. Excessive pressure loss increases pumping energy and operating cost, while insufficient turbulence reduces heat transfer efficiency.

In a properly engineered plate exchanger, pressure drop is optimized by:

• Selecting the correct plate pattern
• Balancing flow velocity
• Ensuring uniform channel distribution

Engineering research published on platforms like
ScienceDirect plate heat exchanger research
explains how turbulence enhancement improves heat transfer without disproportionately increasing pressure loss.

Fouling Behavior and Cleanability Considerations

Fouling is one of the most important lifecycle considerations in plate heat exchangers. Deposits on plate surfaces reduce heat transfer efficiency and increase pressure drop.

A plate type heat exchanger mitigates fouling through:

• High turbulence that limits deposit formation
• Smooth plate surfaces
• Easy dismantling for mechanical cleaning

Because each plate and frame heat exchanger can be opened, fouling can be visually inspected and addressed without specialized tools.

Food safety and hygiene regulations emphasize cleanable equipment designs. Official guidance can be referenced from
FSSAI food processing standards
EFSA food safety authority

Material Selection for Plate Heat Exchangers

Material compatibility directly affects the reliability of a phe heat exchanger. A plate for heat exchanger must withstand:

• Chemical exposure
• Temperature cycling
• Pressure fluctuations

Common industrial materials include various stainless steel grades and specialized alloys selected based on process chemistry. Incorrect material selection can lead to corrosion, plate thinning, and premature failure.

Material performance standards and corrosion data are published by global engineering bodies and government research organizations.

Internal Engineering and Product References

For application-specific configuration and industrial deployment, the following internal resources provide detailed technical direction:

• plate heat exchangers product range overview
  plate heat exchangers
• plate and frame heat exchanger solutions for process industries
  plate and frame heat exchanger
• phe heat exchanger welded configurations for demanding duties
  phe heat exchanger
• plate for heat exchanger manufacturing and plate geometry
  plate for heat exchanger
• plate exchanger spares and lifecycle optimization
  plate exchanger
• plate type heat exchanger engineering expertise and company background
  plate type heat exchanger

Energy Recovery and Sustainability Impact

A plate type heat exchanger plays a crucial role in industrial energy recovery. Waste heat from one process stream can be recovered and reused, reducing overall energy consumption.

Government and international energy agencies highlight compact heat recovery systems as a best practice for sustainable manufacturing, including guidance from
U.S. Department of Energy
International Energy Agency

Selection Workflow for Plate Type Heat Exchanger

Selecting the correct plate type heat exchanger involves a structured engineering process:

1. Define thermal duty and temperature approach
2. Analyze fluid properties and fouling tendency
3. Select appropriate plate pattern and material
4. Verify pressure drop limitations
5. Ensure maintenance and access requirements

Skipping any of these steps can compromise the performance of a plate to plate heat exchanger.

Long-Term Operational and Lifecycle Benefits

From a lifecycle perspective, a plate exchanger offers:

• Predictable maintenance schedules
• Lower replacement cost compared to full system change
• Performance restoration through plate replacement

This makes plate heat exchangers particularly suitable for plants adopting predictive maintenance strategies.

Frequently Asked Questions (FAQs)

1. Why is a plate type heat exchanger more efficient than conventional designs?

Because turbulence created by corrugated plates increases heat transfer rates while minimizing surface area and energy use.

2. How does a plate and frame heat exchanger support hygiene-critical processes?

It can be opened, inspected, and cleaned, ensuring compliance with food and pharmaceutical standards.

3. What role does plate geometry play in a phe heat exchanger?

Each phe plate controls flow turbulence, pressure drop, and heat transfer efficiency.

4. Can a plate exchanger handle future capacity increases?

Yes, additional plates can be added to increase thermal capacity without replacing the unit.

5. How does fouling affect plate heat exchangers?

Fouling reduces efficiency and increases pressure drop, but high turbulence and easy cleaning mitigate this issue.

Final Engineering Perspective

A plate type heat exchanger is not just a compact heat transfer device—it is a precisely engineered system where each plate for heat exchanger influences efficiency, reliability, and energy performance. When properly selected and maintained, plate heat exchangers deliver consistent results across demanding industrial applications.

For industries focused on operational excellence, sustainability, and long-term cost optimization, the plate to plate heat exchanger remains one of the most intelligent thermal engineering choices available today.

1. Installation foundation

The main purpose of the installation foundation is to facilitate the installation of the heat exchanger and the connection of various pipes, so as to facilitate the repair and maintenance of the heat exchanger in the future. Generally, when leaving the factory, three anchors and dimension drawings will be provided. Users can make embedded parts in the foundation according to the dimension drawings and equipment (components pre-installed in the hidden project).

During installation, tighten the anchor nut bolt in order to shake during startup, thus affecting the performance of the heat exchanger. It is also important to note that external forces cannot be applied to the equipment during installation to avoid deformation and affect operation.

2. Piping connection

During connection, attention should be paid to the connection positions of the hot side and outlet pipes and the cold side inlet. When the equipment is designed and selected, it should be marked on the design parameters (the interface direction of the flow is 1 can be marked with D1 hot inlet, D2 hot outlet, D3 cold inlet, etc.). The installation personnel should make sure that each pipe function has been checked before piping connection. When connecting, check whether there are sundries inside the pipe to avoid equipment blockage or affecting heat exchange efficiency.

In order to ensure the long-term normal operation of the removable plate heat exchanger and reduce the occurrence of accidents, the plate heat exchanger must be maintained. During the inspection process, in addition to checking the operation records of the heat exchanger, we mainly check the appearance to see if there is any abnormality. The key points are as follows:

1. External conditions.

Check the external conditions of the plate heat exchanger in operation, including:

• Check the joint part: check whether the welding part of the main body, flange joint, pipe connection part leaks outward or the bolts are loose.
• Foundation and support frame inspection: check whether the anchor bolts are loose, whether the cement foundation is cracked or fallen off, and whether the steel support is deformed, damaged or deteriorated.
• Inspection of thermal and cold insulation device: check whether the external part of the thermal and cold insulation device is damaged, especially the waterproof layer and support leg covering the external part are easy to be damaged, and pay attention to inspection.
• Coating inspection: check the deterioration of the external coating.
• Vibration inspection: check whether the main body and connecting pipe have abnormal vibration and sound. In case of any abnormality, find out the cause and take necessary measures.

2. Measure the thickness.

For the heat exchanger running continuously for a long time, it should be worried about its abnormal corrosion. Therefore, the thickness of the shell should be measured from the outside as required, and the corrosion displacement should be calculated. Non-destructive thickness gauges such as ultrasonic shall be used in the measurement process.

3. Internal leakage.

Internal leakage of heat exchanger includes: pipeline corrosion. Thinning and perforation caused by wear; The expansion part is loose due to cracks, corrosion and vibration; Wear caused by contact with baffle. Perforation; Loosen the fastening bolts of the floating head cover. Fracture and deterioration of sealing gasket of these parts. Due to the internal leakage of the heat exchanger and the mixing of the two fluids, it is necessary to disassemble and check the safety immediately, because the staining may occur under normal circumstances. Impurity mixing causes the product to fail to meet the specifications, reduce the quality, and even stop the equipment. Therefore, it is important to find the internal leakage as soon as possible through sampling and analysis of the low pressure fluid outlet of the heat exchanger.

4. Pressure loss.

Find out the amount of fluid pressure loss caused by the products attached inside and outside the pipe.

5. Temperature change.

Measure and investigate the temperature change of each fluid inlet and outlet of the heat exchanger and the process of heat transfer reduction to determine the pollution.

6. Precautions for operation.

The heat exchanger cannot give severe temperature changes. Ordinary heat exchangers take thermal expansion measures based on the operating temperature. Therefore, a sharp temperature change will cause local thermal stress and loosen or damage the pipeline. Therefore, special attention should be paid to temperature rise and fall.

The temperature of cooling water shall not exceed the required level: seawater is used as cooling water on the heat exchanger. If the outlet temperature of cooling water exceeds 50 ℃, it will promote microbial abnormality. On the contrary, the decomposition and adhesion of non-staple food products will sharply lead to pipeline corrosion, perforation and performance degradation, so attention should be paid.

Pay full attention to the abnormal rise of pressure and temperature, fully understand the design conditions of the heat exchanger, and use the instrument to check whether the pressure and temperature rise abnormally.

7. Disassembly inspection and maintenance inspection.

According to the relevant regulations on the failure and performance degradation of the heat exchanger, the operation shall be stopped regularly and the disassembly inspection shall be carried out.

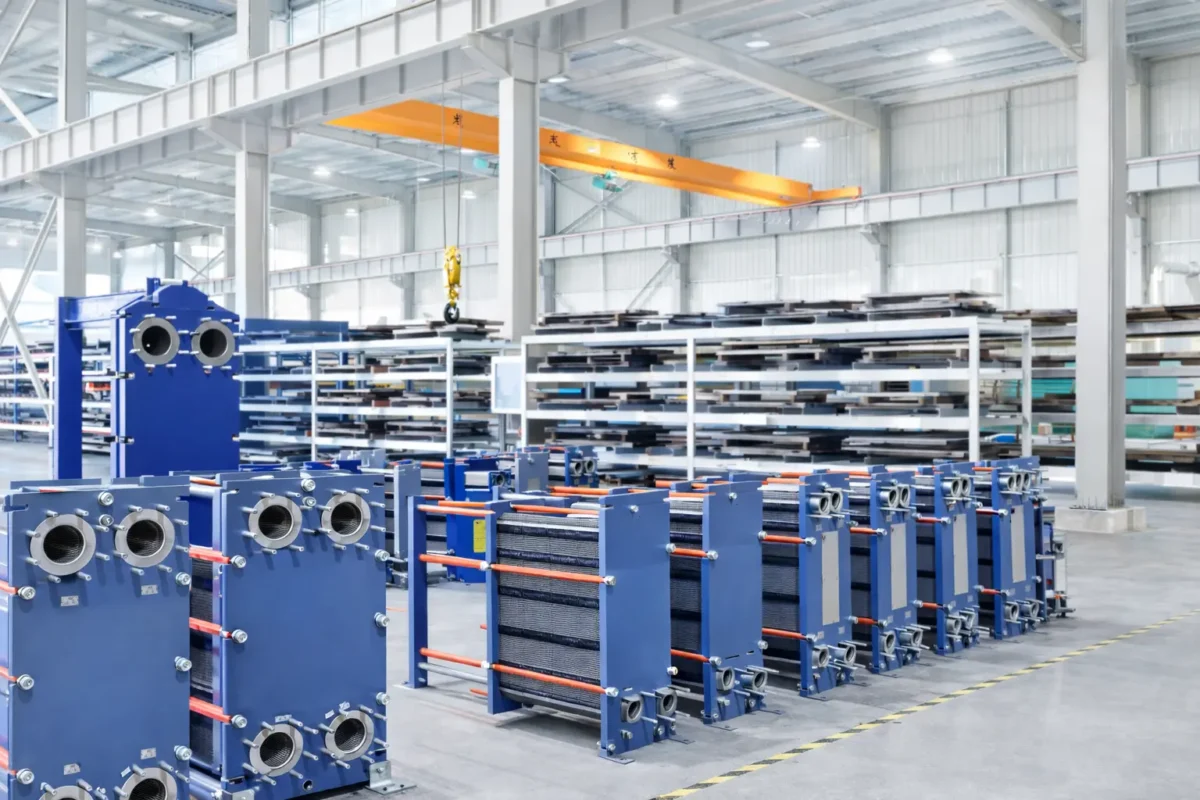

The stiffness of the plate heat exchanger plate refers to the ability of the plate to deform against the effect of the medium with different pressures on both sides under the clamping effect of the fixed compression plate and the interactive compression plate after the plate is assembled according to the requirements. Under normal working conditions, in addition to sufficient strength, the plate also needs stiffness to control the gradual deformation of the plate.

Let the heat exchange medium run evenly in the liquid layer in the plate channel to ensure the heat exchange efficiency. According to the working principle of thermal expansion and contraction, the main reason for the expansion or contraction of the plate is the increase or decrease of the temperature in the equipment, but the expansion or contraction of the plate is also affected by the fixed compression plate and the movable compression plate. Two layers of constraints.

When the thermal expansion and contraction of the heat exchanger cannot be carried out freely, stress will occur, which requires that the heat transfer plate should have sufficient rigidity and pressure resistance. Therefore, the stiffness of the heat exchanger plate depends not only on the density and accuracy of the position of the support point, but also on the thickness, length, width and other factors of the plate.

In short, the plate heat exchanger should be selected strictly according to the use requirements of plate stiffness, so as to better ensure the use efficiency and quality of the equipment, thereby effectively prolonging its service life.
